How to install the vibrating screen bearing

time:Nov 06, 2024 source:ZEXCIT

Installing bearings in a vibrating screen is a critical task that requires precision to ensure that the machine operates effectively, minimizes downtime, and maximizes bearing life. Vibrating screens operate under harsh conditions, with heavy loads and high vibration, so proper bearing installation is essential to prevent premature failure.

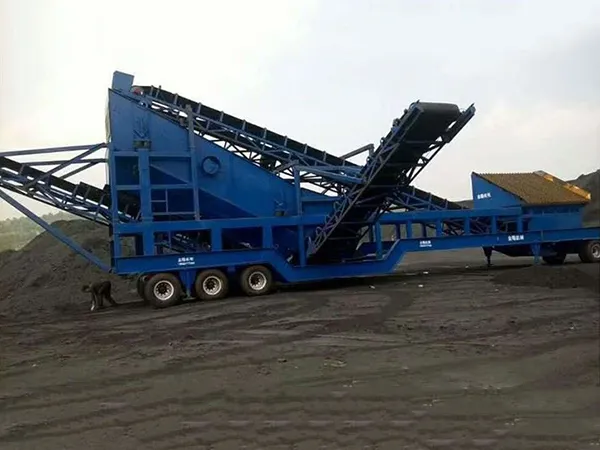

Vibrating screen bearing installation

vibrating screen

1. Prepare for Installation

Gather Tools and Materials: Make sure you have the necessary tools and equipment, including the correct bearings, tools for mounting (e.g., bearing pullers, wrenches, hammers), grease or lubricant, cleaning materials, and any special tools for your screen design.

Ensure Proper Conditions: Perform the installation in a clean, dry environment to avoid contamination of the bearings. If necessary, use a workbench with sufficient space to handle the components.

2. Inspect the Bearings

Check for Damage: Before installation, inspect the bearings for any signs of damage (such as cracks or dents) or contamination. Ensure the bearings are the correct size and type for your vibrating screen.

Clean Bearings: If the bearings are new, ensure they are free of dirt or debris. Wipe the bearings with a clean cloth if needed. If you're reusing old bearings, thoroughly clean them before installation.

3. Prepare the Housing and Shaft

Inspect the Shaft and Housing: Ensure that the shaft and housing where the bearings will be installed are in good condition. Look for any wear, damage, or signs of corrosion that could affect bearing performance.

Clean the Shaft and Housing: Clean both the shaft and bearing housing with a lint-free cloth to remove any dirt, dust, or oil. If necessary, lightly polish the surfaces with a fine abrasive cloth.

Check for Tolerances: Verify that the shaft and housing have the correct dimensions to match the bearing’s internal and external diameters. The fit should not be too tight or too loose.

4. Install the Bearings

Apply Grease or Lubrication: If the bearings are grease-lubricated, apply a thin layer of grease to the inner race and the shaft. Use only the recommended type and amount of lubricant. If the bearing is sealed, it may not require lubrication before installation.

Use Bearing Installation Tools: Use proper tools to install the bearings. It is crucial not to damage the bearing by applying force directly to the rolling elements (balls or rollers). Use bearing fitters or sleeves to apply pressure to the outer race of the bearing only.

Install the Bearing on the Shaft: Gently slide the bearing onto the shaft, ensuring it moves smoothly without excessive force. Do not hammer or force the bearing onto the shaft. If the bearing is tight, use a press to push it into place evenly.

Install the Bearing in the Housing: Similarly, install the other bearing into the bearing housing. Ensure that the bearing is properly seated and aligned with the housing.

vibrating screen

5. Align the Bearings

Check Alignment: Proper alignment of the bearings is crucial to prevent premature wear or failure. Use alignment tools or a straight edge to check that both the shaft and housing are properly aligned.

Ensure Proper Radial and Axial Clearance: Depending on the bearing type, ensure that the radial and axial clearance meet the specifications for the vibrating screen application.

6. Install the Bearing Locking Device

Locking Rings or Nuts: Use locking rings, nuts, or retaining collars to secure the bearings in place. Tighten the retaining nuts or locking devices evenly and according to the manufacturer’s recommended torque values.

Check for Secure Installation: Ensure that the locking device holds the bearing securely in place without any play or movement. The bearing should be able to rotate freely without wobbling or resistance.

7. Mount the Vibrating Screen on the Machine

Install the Screen onto the Frame: Once the bearings are installed on the shaft and housed correctly, you can mount the vibrating screen assembly onto the frame or chassis. Secure the screen with bolts and ensure the screen is properly balanced.

Check the Vibrator Mechanism: Ensure that the vibrator mechanism, typically an eccentric weight or unbalanced rotor, is properly installed and secured to the screen frame. The bearings in the vibrator must be in proper alignment to handle the vibration forces.

8. Lubricate and Test the Installation

Final Lubrication: After installation, check the lubrication level of the bearings and top up if necessary. For vibrating screens, the lubricant may need to be checked periodically, as high vibrations can affect lubrication.

Test Run the Vibrating Screen: Perform a test run to check for any unusual sounds, excessive heat, or vibrations. Ensure that the screen is vibrating smoothly and the bearings are functioning correctly.

Monitor During Operation: Once the vibrating screen is operating, monitor the bearings and the overall system during the initial run. Listen for any abnormal noise or vibration, which could indicate issues with bearing installation.

9. Maintenance and Monitoring

Regular Inspection: Vibrating screens operate under harsh conditions, so regular inspection of the bearings is crucial. Keep an eye on the bearing temperature and vibration levels to ensure early detection of any issues.

Lubrication Maintenance: If the bearings are grease-lubricated, ensure that the grease is replenished at regular intervals according to the manufacturer’s recommendations.

Condition Monitoring: Use vibration monitoring tools to track the condition of the bearings. Vibrating screens often have high radial and axial forces, so keeping an eye on bearing condition can help prevent premature failure.

vibrating screen

Common Issues to Avoid During Installation:

Excessive Force: Avoid hammering bearings into place as it can cause damage. Use proper bearing installation tools such as presses and sleeves.

Incorrect Lubrication: Too much or too little lubrication can result in overheating or premature wear. Follow the manufacturer’s lubrication guidelines.

Misalignment: Misalignment of the bearings or shaft can lead to excessive wear and vibration. Ensure the bearings are properly aligned during installation.

By following these steps and taking proper care during the installation process, you can extend the life of the bearings in your vibrating screen and improve the overall performance and reliability of the system.
